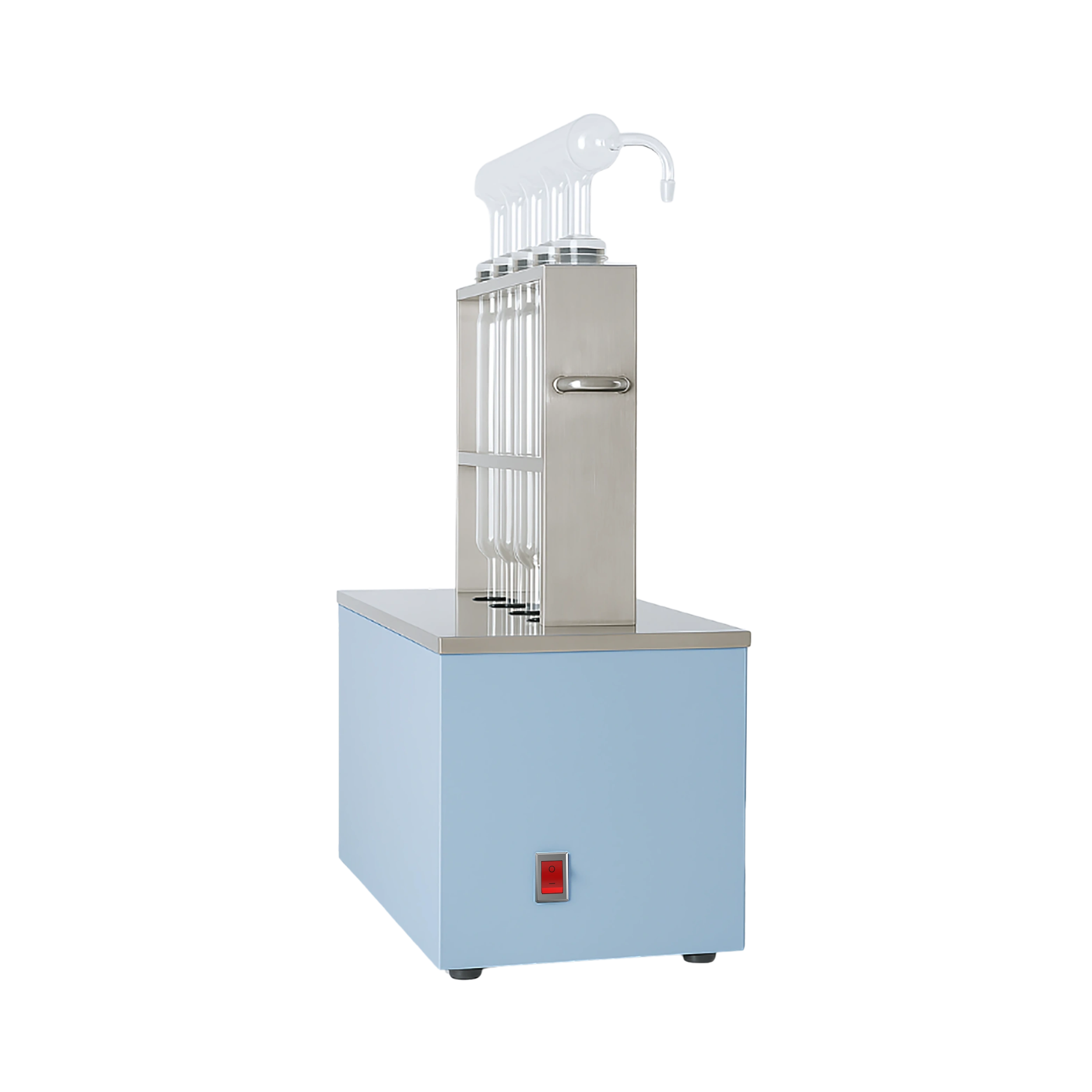

Digestion Furnace LB-11DF

Digestion furnace LB-11DF is a type C digital temperature control unit with multi protection function ensuring operator safety. High efficiency quartz infrared heating pipe provides auxiliary conduction for homogenous digestion of the sample. Built in dual shell design with air thermal insulation and aluminium silicate thermal insulation to generate a dual insulation effect.

Request Quote Download Catalog

Specifications

Sample holes	8
Heating module material	Infrared
Temperature control mode	Digital
Temperature control ranges	RT ~ 600 °C
Temperature control accuracy	± 1 °C
Measurement range	0.1 mgN ~ 200 mgN
Digestion time(according to sample quantity)	0.1 mgN ~ 200 mgN
Digestion pipe capacity	300 ml
Power	1.5 kW
Operating voltage	AC 220 V/50 Hz
Dimensions	500 x 300 x 600 mm
Weight	15 kgs

Features

Microprocessor controlled temperature system
High thermal efficiency
Long life quartz infrared heating pipe
Plastic spray steel box prevents mechanical surface damage
Anticorrosion stainless steel working area
Multiple protection function (overpressure, overheating and overcurrent)

Applications

Used in food and beverage, pharmaceutical, environmental, chemical, biotechnology industries for uniform digestion of bulk samples to enhance speed of Kjeldahl procedures.
